- Finish: Satin Black
-
Size: 16.0x7
- Bolt Pattern: 5-4.25/5-4.5
- Offset: +40
- Warranty: 1-Year Limited Warranty
Raceline
Evo
Actual product bolt pattern and offset may vary from image.
Raceline
Evo Wheels
Wheels
https://www.lesschwab.com/dw/image/v2/BCDC_PRD/on/demandware.static/-/Sites-les-master-catalog/default/dw7b01a7d1/images/Products/Wheels/Raceline_131B-Evo_BlackDkGrey.png?sw=390&sh=390&sm=fit

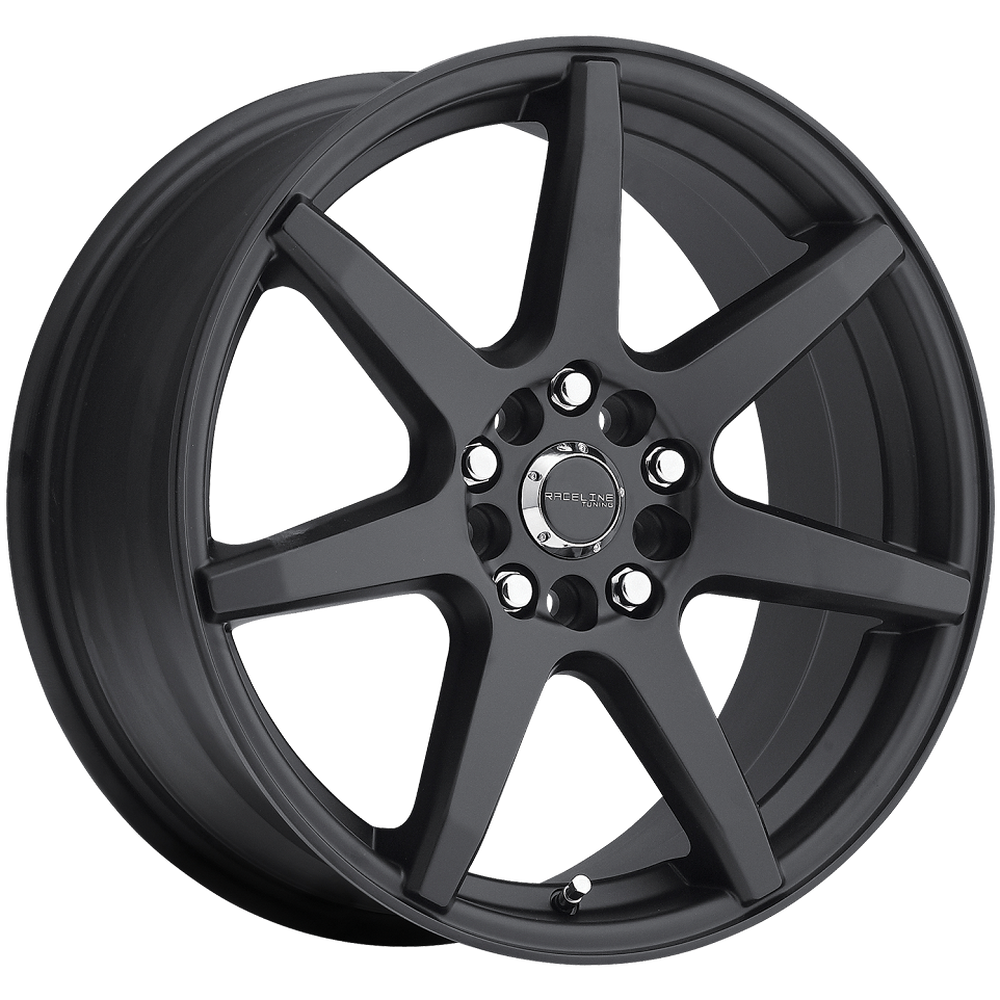

The Raceline Evo is an aluminum wheel available in rim sizes 15 to 18. It comes in a matte black or silver machined finish. The Evo is designed for the passenger car and SUV markets.
Evo
Satin Black
The Raceline Evo is an aluminum wheel available in rim sizes 15 to 18. It comes in a matte black or silver machined finish. The Evo is designed for the passenger car and SUV markets.
- Diameter:
- 16.0
- Offset:
- +40
- Width:
- 7
- Material:
- Aluminum
- Bolt Pattern :
- 5-4.25/5-4.5
- Center Bore Measurement:
- 72.62
- SKU:
- 509339
Evo
| Size | Bolt Pattern | Offset | Backspace (in.) | Max Load Capacity | Finish |
|---|---|---|---|---|---|
| 15x7 | 4-100/4-4.25 | 40 | 5.58" | 1600 | Satin Black |
| 15x7 | 5-100/5-4.5 | 40 | 5.58" | 1600 | Satin Black |
| 16x7 | 4-100/4-4.25 | 40 | 5.58" | 1600 | Satin Black |
| 16x7 | 5-112/5-120 | 20 | 4.79" | 1675 | Satin Black |
| 16x7 | 5-110/5-115 | 40 | 5.58" | 1600 | Satin Black |
| 16x7 | 5-4.25/5-4.5 | 20 | 4.79" | 1675 | Satin Black |
| 16x7 | 5-4.25/5-4.5 | 40 | 5.58" | 1600 | Satin Black |
| 16x7 | 5-112/5-120 | 40 | 5.58" | 1600 | Satin Black |
| 16x7 | 5-100/5-4.5 | 40 | 5.58" | 1600 | Satin Black |
| 17x7.5 | 5-4.25/5-4.5 | 40 | 5.83" | 1600 | Satin Black |
| 17x7.5 | 5-110/5-115 | 40 | 5.83" | 1600 | Satin Black |
| 17x7.5 | 4-100/4-4.25 | 40 | 5.83" | 1600 | Satin Black |
| 17x7.5 | 5-112/5-120 | 20 | 5.04" | 1675 | Satin Black |
| 17x7.5 | 5-100/5-4.5 | 40 | 5.83" | 1600 | Satin Black |
| 17x7.5 | 5-4.25/5-4.5 | 20 | 5.04" | 1675 | Satin Black |
| 17x7.5 | 5-112/5-120 | 40 | 5.83" | 1600 | Satin Black |
| 18x7.5 | 5-4.25/5-4.5 | 42 | 5.58" | 1600 | Satin Black |
| 18x7.5 | 5-110/5-4.5 | 42 | 5.91" | 1600 | Satin Black |
| 18x7.5 | 5-100/5-4.5 | 42 | 5.91" | 1600 | Satin Black |
| 18x7.5 | 5-112/5-120 | 42 | 5.91" | 1600 | Satin Black |
our best Wheels value promise
Free Services Over the Lifetime of Your Wheels
Check out all the free services we offer with every wheel purchase.
- Guaranteed WorkmanshipFREE
- Rebalancing FREE
- Retorquing FREE
- Safety Inspections FREE
| Installed Price | ||
|---|---|---|
| Installed Price | Single Wheel | Set of 4 Wheels |
| Evo Wheel (16x7) | $166.99 | $667.96 |
| Valve Stem / TPMS Rebuild Service+ | $8.99 | $35.96 |
| Lug Wheel Installation Package | $82.00 | |
| Applicable Federal, State and Local Taxes and Feesยง | $12.18 | $48.72 |
| Total*** | $188.16 | $834.64 |
