Raceline
Split
Actual product bolt pattern and offset may vary from image.
Raceline
Split Wheels
Wheels
https://www.lesschwab.com/dw/image/v2/BCDC_PRD/on/demandware.static/-/Sites-les-master-catalog/default/dwec28be01/images/Products/Wheels/Raceline_948C-Split_8_20x10_Chrome.png?sw=390&sh=390&sm=fit

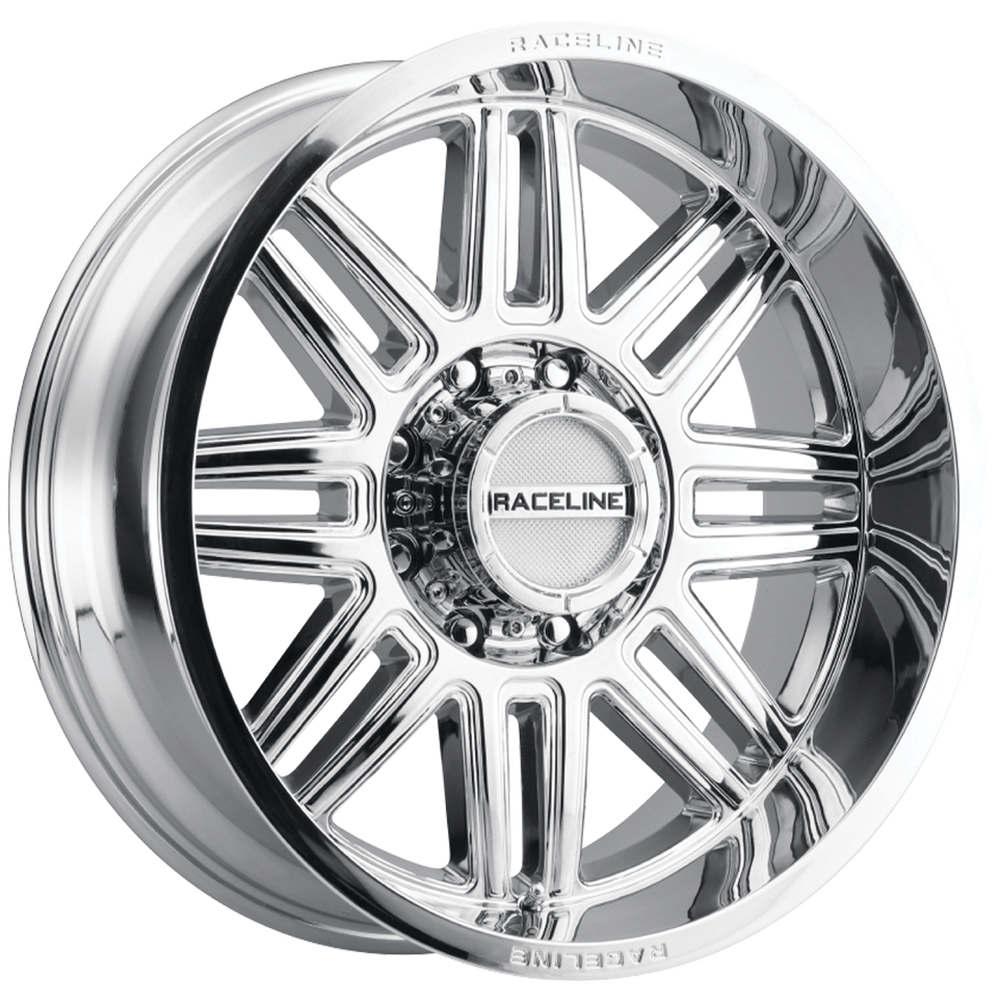

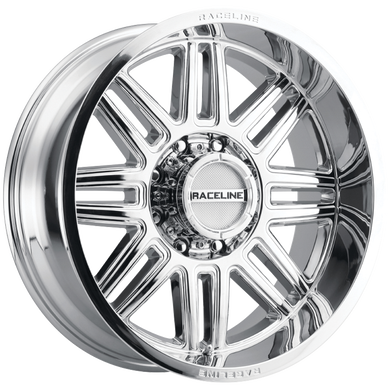

The Raceline Split is an aluminum wheel available in rim sizes 16 to 20. It comes in a chrome or satin black finish. The Split is designed for the light truck market.
Years of Free Services Included with Every Wheel Purchase
Split
Chrome
The Raceline Split is an aluminum wheel available in rim sizes 16 to 20. It comes in a chrome or satin black finish. The Split is designed for the light truck market.
Split
| Size | Bolt Pattern | Offset | Backspace (in.) | Max Load Capacity | Finish |
|---|---|---|---|---|---|
| 16x8 | 5-4.5 | 0 | 4.50" | 2500 | Chrome |
| 16x8 | 8-6.5 | 0 | 4.50" | 3650 | Chrome |
| 16x8 | 5-5.5 | 0 | 4.50" | 2500 | Chrome |
| 16x8 | 8-170 | -6 | 4.26" | 3650 | Chrome |
| 16x8 | 5-5 | 0 | 4.50" | 2500 | Chrome |
| 16x8 | 6-5.5 | 0 | 4.50" | 2500 | Chrome |
| 17x8.5 | 5-5.5 | 0 | 4.75" | 2500 | Chrome |
| 17x8.5 | 5-5.5 | 18 | 5.46" | 2500 | Chrome |
| 17x8.5 | 5-5 | 18 | 5.46" | 2500 | Chrome |
| 17x8.5 | 6-135 | 18 | 5.46" | 2500 | Chrome |
| 17x8.5 | 5-5 | 18 | 4.75" | 2500 | Chrome |
| 17x8.5 | 6-5.5 | 0 | 4.75" | 2500 | Chrome |
| 17x8.5 | 6-135 | 18 | 4.75" | 2500 | Chrome |
| 17x8.5 | 6-5.5 | 18 | 5.46" | 2500 | Chrome |
| 17x9 | 5-5 | -12 | 4.50" | 2500 | Chrome |
| 17x9 | 8-6.5 | 18 | 5.57" | 3650 | Chrome |
| 17x9 | 8-6.5 | -12 | 4.50" | 3650 | Chrome |
| 17x9 | 8-170 | -12 | 4.50" | 3650 | Chrome |
| 17x9 | 8-180 | 18 | 5.57" | 3650 | Chrome |
| 17x9 | 6-5.5 | -12 | 4.50" | 2500 | Chrome |
| 17x9 | 8-170 | 18 | 5.57" | 3650 | Chrome |
| 18x9 | 5-5.5 | 18 | 5.57" | 2500 | Chrome |
| 18x9 | 8-6.5 | 18 | 5.57" | 3650 | Chrome |
| 18x9 | 8-6.5 | -12 | 4.50" | 3650 | Chrome |
| 18x9 | 8-180 | -12 | 4.50" | 3650 | Chrome |
| 18x9 | 5-5.5 | -12 | 4.50" | 2500 | Chrome |
| 18x9 | 8-170 | -12 | 4.50" | 3650 | Chrome |
| 18x9 | 5-5 | 18 | 5.57" | 2500 | Chrome |
| 18x9 | 8-170 | 18 | 5.57" | 3650 | Chrome |
| 18x9 | 6-5.5 | -12 | 4.50" | 2500 | Chrome |
| 18x9 | 6-135 | 18 | 5.57" | 2500 | Chrome |
| 18x9 | 8-180 | 18 | 5.57" | 3650 | Chrome |
| 18x9 | 5-150 | 18 | 5.57" | 2500 | Chrome |
| 18x9 | 6-5.5 | 18 | 5.57" | 2500 | Chrome |
| 20x9 | 8-6.5 | 0 | 5.00" | 3650 | Chrome |
| 20x9 | 5-5 | 0 | 5.00" | 2500 | Chrome |
| 20x9 | 6-5.5 | 0 | 5.00" | 2500 | Chrome |
| 20x9 | 8-170 | 18 | 5.57" | 3650 | Chrome |
| 20x9 | 8-180 | 18 | 5.57" | 3650 | Chrome |
| 20x9 | 8-170 | 18 | 5.00" | 3650 | Chrome |
| 20x9 | 6-5.5 | 18 | 5.57" | 2500 | Chrome |
| 20x9 | 8-6.5 | 18 | 5.57" | 3650 | Chrome |
| 20x9 | 5-5.5 | 18 | 5.57" | 2500 | Chrome |
| 20x9 | 6-135 | 18 | 5.57" | 2500 | Chrome |
| 20x9 | 5-150 | 18 | 5.57" | 2500 | Chrome |
| 20x10 | 8-6.5 | -19 | 4.75" | 3650 | Chrome |
| 20x10 | 6-5.5 | -19 | 4.75" | 2500 | Chrome |
| 20x10 | 8-170 | -19 | 4.75" | 3650 | Chrome |
| 20x10 | 8-180 | -19 | 4.75" | 3650 | Chrome |
| 20x10 | 6-135 | -19 | 4.75" | 2500 | Chrome |
| 20x12 | 8-170 | -44 | 4.75" | 3650 | Chrome |
| 20x12 | 8-6.5 | -44 | 4.75" | 3650 | Chrome |
