Raceline
Scout
Actual product bolt pattern and offset may vary from image.
Raceline
Scout Wheels
Wheels
https://www.lesschwab.com/dw/image/v2/BCDC_PRD/on/demandware.static/-/Sites-les-master-catalog/default/dw6e17db00/images/Products/Wheels/Raceline_947B-Scout_5_17x9_BlackDkGrey.png?sw=390&sh=390&sm=fit

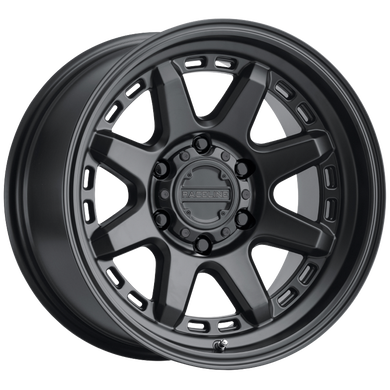

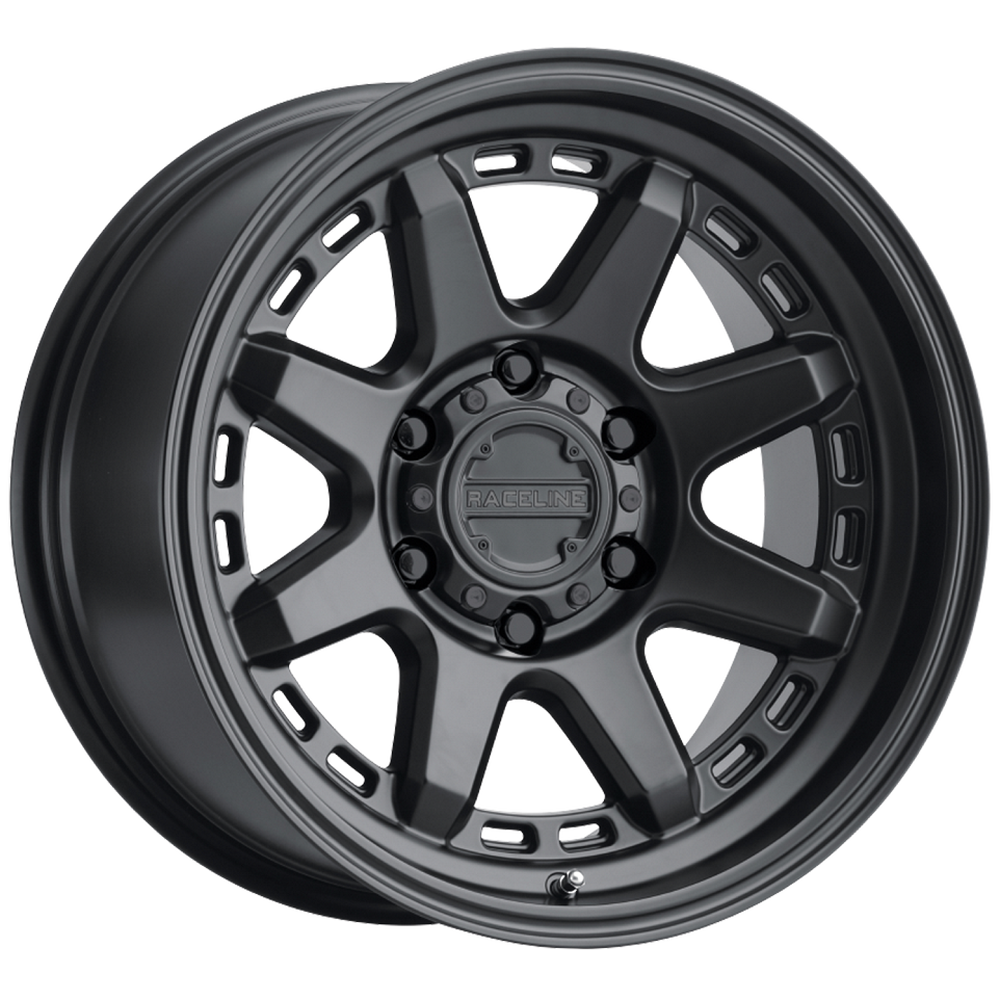

The Raceline Scout is an aluminum wheel available in rim sizes 15 to 20. It comes with a satin black finish. The Scout is designed for the light truck market.
Years of Free Services Included with Every Wheel Purchase
Scout
Satin Black
The Raceline Scout is an aluminum wheel available in rim sizes 15 to 20. It comes with a satin black finish. The Scout is designed for the light truck market.
Scout
| Size | Bolt Pattern | Offset | Backspace (in.) | Max Load Capacity | Finish |
|---|---|---|---|---|---|
| 15x8 | 6-5.5 | -24 | 3.50" | 2250 | Satin Black |
| 15x8 | 5-5.5 | -24 | 3.50" | 2250 | Satin Black |
| 15x8 | 5-4.5 | -24 | 3.50" | 2250 | Satin Black |
| 16x8 | 8-170 | -6 | 4.26" | 3500 | Satin Black |
| 16x8 | 5-4.5 | 0 | 4.50" | 2500 | Satin Black |
| 16x8 | 6-5.5 | 0 | 4.50" | 2500 | Satin Black |
| 16x8 | 5-5 | 0 | 4.50" | 2500 | Satin Black |
| 16x8 | 5-5.5 | 0 | 4.50" | 2500 | Satin Black |
| 16x8 | 8-6.5 | 0 | 4.50" | 3500 | Satin Black |
| 17x8.5 | 5-5 | 18 | 5.46" | 2500 | Satin Black |
| 17x8.5 | 6-5.5 | 0 | 4.75" | 2500 | Satin Black |
| 17x8.5 | 6-135 | 0 | 4.75" | 2500 | Satin Black |
| 17x8.5 | 5-5.5 | 18 | 5.46" | 2500 | Satin Black |
| 17x8.5 | 5-5 | 18 | 4.75" | 2500 | Satin Black |
| 17x8.5 | 6-135 | 18 | 5.46" | 2500 | Satin Black |
| 17x8.5 | 6-5.5 | 18 | 5.46" | 2500 | Satin Black |
| 17x8.5 | 5-5.5 | 18 | 4.75" | 2500 | Satin Black |
| 17x9 | 8-170 | -12 | 4.50" | 3650 | Satin Black |
| 17x9 | 8-6.5 | 18 | 5.57" | 3650 | Satin Black |
| 17x9 | 8-6.5 | -12 | 4.50" | 3650 | Satin Black |
| 17x9 | 5-5 | -12 | 4.50" | 2500 | Satin Black |
| 17x9 | 6-5.5 | -12 | 4.50" | 2500 | Satin Black |
| 17x9 | 8-180 | 18 | 5.57" | 3650 | Satin Black |
| 18x9 | 8-6.5 | -12 | 4.50" | 3650 | Satin Black |
| 18x9 | 5-150 | 18 | 5.57" | 2500 | Satin Black |
| 18x9 | 6-135 | 18 | 5.57" | 2500 | Satin Black |
| 18x9 | 8-170 | 18 | 5.57" | 3650 | Satin Black |
| 18x9 | 6-5.5 | 18 | 5.57" | 2500 | Satin Black |
| 18x9 | 6-5.5 | -12 | 4.50" | 2500 | Satin Black |
| 18x9 | 8-180 | 18 | 5.57" | 3650 | Satin Black |
| 18x9 | 8-6.5 | 18 | 5.57" | 3650 | Satin Black |
| 18x9 | 5-5.5 | 18 | 5.57" | 2500 | Satin Black |
| 18x9 | 5-5 | 18 | 5.57" | 2500 | Satin Black |
| 18x9 | 5-5.5 | -12 | 4.50" | 2500 | Satin Black |
| 18x9 | 8-170 | -12 | 4.50" | 3650 | Satin Black |
| 18x9 | 8-180 | -12 | 4.50" | 3650 | Satin Black |
| 20x9 | 8-6.5 | 18 | 5.57" | 3650 | Satin Black |
| 20x9 | 5-5.5 | 18 | 5.57" | 2500 | Satin Black |
| 20x9 | 8-6.5 | 18 | 5.00" | 3650 | Satin Black |
| 20x9 | 8-170 | 18 | 5.57" | 3650 | Satin Black |
| 20x9 | 8-170 | 18 | 5.00" | 3650 | Satin Black |
| 20x9 | 6-5.5 | 0 | 5.00" | 2500 | Satin Black |
| 20x9 | 6-5.5 | 18 | 5.57" | 2500 | Satin Black |
| 20x9 | 5-5 | 0 | 5.00" | 2500 | Satin Black |
| 20x9 | 8-180 | 18 | 5.57" | 3650 | Satin Black |
| 20x9 | 6-135 | 18 | 5.57" | 2500 | Satin Black |
| 20x9 | 5-150 | 18 | 5.57" | 2500 | Satin Black |
| 20x10 | 8-180 | -19 | 4.75" | 3650 | Satin Black |
| 20x10 | 6-5.5 | -19 | 4.75" | 2500 | Satin Black |
| 20x10 | 8-170 | -19 | 4.75" | 3650 | Satin Black |
| 20x10 | 6-135 | -19 | 4.75" | 2500 | Satin Black |
| 20x10 | 8-6.5 | -19 | 4.75" | 3650 | Satin Black |
